Hydraulic hose protector spiral made of high-density polypropylene (HDPP), protect your hydraulic hoses against abrasion from dirt, rocks, dust; oils, sun, and solvents, dramatically reducing the likelihood of hose failure and extending the lifespan of your hoses.

Plastic spiral hydraulic hose wrap protector is an economical and convenient way to protect and extend the life of hydraulic and pneumatic hoses, cables, wires, and rope from premature wear.

hydraulic hose protective sheath can install easily without removing connectors or terminals, it's an easy cable management solution for hydraulic hoses, pipes, and cables.

Application

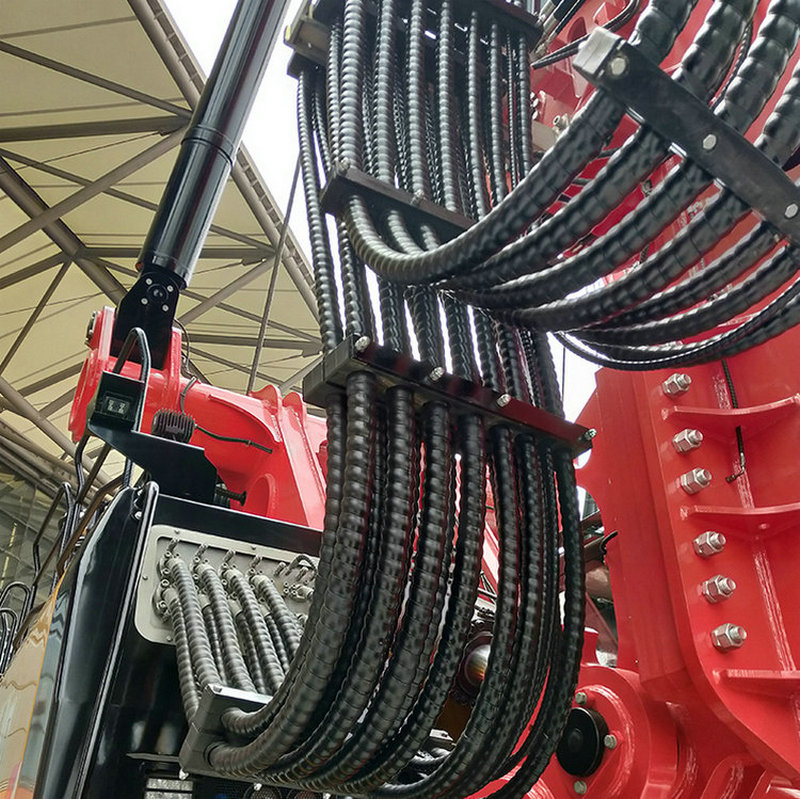

The hydraulic hose protective sheath is ideal for mining, equipment, forestry, agriculture, trucking, automotive applications, which is used for cables, wires, and other similar lines that need protection or organization.

What's the special about hydraulic hose protective sheath?

1. Exceptional anti-crushing performance, stress cracking resistance, load-bearing strength.
2. Resistant to acids, oils, and solvents.
3. High abrasion resistance.
4. UV resistance.
5. Proven in arduous conditions.
6. Self-lubricating to reduce wear on hoses and cables.
7. Suitable for wrapping single or multiple hose bundles. Fit most types of hydraulic, pneumatic, and industrial hose assemblies.
8. Spiral design makes it easily fitted on-site without the removal of rubber hoses.
9. Greatly extends the working life of hydraulic hoses.

Physical properties

Material: Modified polypropylene

Working temperature: -40℃ to 105℃

Tensile strength: 25 Mpa at normal temperature

Standard color: Black

Certification: ROHS

Cutting tool: Scissor

Industrial's hydraulic hose spiral wraps protect your hydraulic hoses from abrasion, dramatically reducing the likelihood of hose failure and extending the lifespan of your hoses. Though primarily designed for use with hydraulic hoses, our spiral wrap can be used for any application where cables, wires, and other similar lines need protection or organization. This modified polypropylene stays rigid through extreme temperatures with a rated effectiveness between -50°F and 221°F. With a robust tensile strength of 3625.94 PSI, our spiral wrap can take a serious beating through dust, dirt, oils, sun, solvents, as well as other elements and surprises your work environment might throw at your hydraulic lines. The rigid tapered design allows for strength and pliability for ease of installation and removal.

Whether you have one hydraulic hose or several you want to run through one wrap, or whatever your application, TEMCo's spiral wraps are manufactured to be as good as the expensive name brands without the expensive price tag.

Length: 10 ft
Inner Diameter (I.D.) - Decimal: 0.630"
Inner Diameter (I.D.) - Fractional: 5/8"
Thickness: 0.020" to 0.079"
Width: 0.591"
Hose Outer Diameter (O.D.) Fit Range - Decimal 0.591" to 0.9"
Hose Outer Diameter (O.D.) Fit Range - Fractional 9/16" to 7/8"
Material Modified Polypropylene
Operating Temperature Range: -50°F to +221°F
Tensile Strength: 3625.94 PSI at room temperature
Color: Black
Certification: ROHS
Resistances: Resistant to oils and solvents
Warranty: 1 Year

Provides abrasion resistance to your hydraulic hoses, providing an increased lifespan for your equipment.

Protects against: abrasion from dirt, rocks, and dust; oils, sun, and solvents.

Works effectively in extreme temperatures, from as low as -50°F to as high as 221°F.

Use the fit range specification to see which wrap size best fits your hose.

3625.94 PSI tensile strength modified polypropylene, designed to last.
